ColorChecker.

A low-cost color measurement instrument for liquids.

ColorChecker is normally used for off-line measurements, similar to a pH meter: The operator dips the probe into the dyebath to be measured and, a few seconds later, the color values (L, a, b, strength) are displayed. A comparison with reference values (e.g. a lab dyeing or a previous bulk batch) will indicate whether or not there is any significant deviation. ColorChecker is a key tool for achieving 'Blind dyeing'.

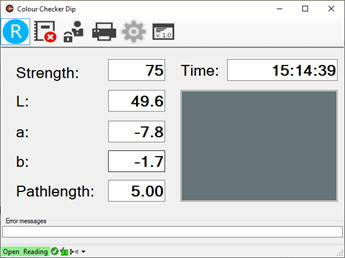

Screenshot

Features

Touch screen controller with proprietary software running on Windows 10 IoT
Dye concentration range: ca. 0.01 to 10g/l
Output of L-, a-, b-values, color strength, visual representation of the measured color
For water-based solutions of up to 140°C, pH 3 to 12
Optional PLC-based I/Os, e.g. for the recording of other process parameters like temperature or controlling valves
